• ATM machines provide the best value of any retail cash dispenser in the industry with added peace-of-mind from enhanced security features at an affordable price. Exceptional cash dispense functionality is the culmination of many factors. Obviously the ATM dispenser, itself is first and foremost. At minimum it should offer improved UL 291 business hours safe with added break-in protection, an EMV card reader, a PCI 3.0 compliant keypad and secure communications protection using Transport Layer Security transmission encryption. Supported by ATM field technician technique and the capabilities of the equipment will surpass security and safety measures.
One factor that is often overlooked in commercial establishments and outdoor malls alike is the foul practices of poorly maintained ATM machines. The sense of "repair" that requires the Ellipse head driver doesn't advocate the scope of repair that can be supported at the field level (Field Repair Scope). Which is limited only to fixing the communication or battery cable problem, resolving jams, checking motor, sensor, controller board problems, adjustment, lubrication and cleaning jobs.
Using the Ellipse head driver means a regular cleaning regime that removes impurities on an hourly, daily, and weekly basis. Don't be put off by the detailed-oriented nature of the task - the reward is genuinely better and a more consistently fully functional ATM.
For problems with other components, replace the Module and inspect and fix it at the Depot level. Involved in this Preventive Maintenance Check List is the required tool, Ellipse head driver.
The screwdriver of recommendation (Ellipse head driver) generally applies to any ATM machine with Identification Tab Screws; feel free to adapt the Ellipse head driver to your own personal use. In doing so, you remove one impediment standing between you and a great ATM (money dispenser) performance. This Newelectronx tool set includes the Ellipse head driver.

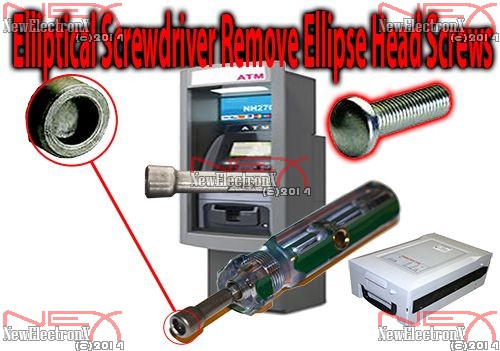

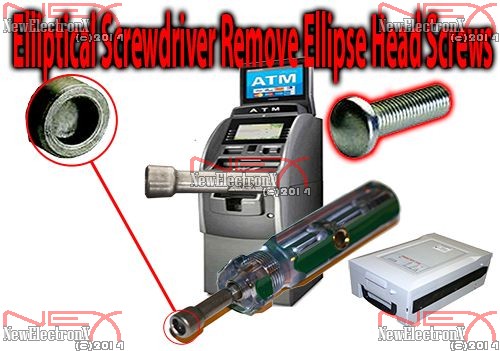

These ATM models will require an elliptical screwdriver to remove ellipse head screws from the ATM cassette: Elliptical Screwdriver Compatibility: All Hyosung 1,000 Note, 2,000 Note, 3K Plastic Cassettes.
Models : NH 2700CE, MX 5300XP, MX 7600T, NH 1800CE, NH 1500, MX 5600, MX 5100T, MX 5000CE, NH 2200, MX 5200T, MX 7000T, NH 1800SE, NH 1800, NH 2700T, NH 5050, MX 5000SE, NH 2500, MX 7100T, MX 5600T, NH 1000, NH 2000, NH 2100T, NH 9030, MX 5100, MX 7600D, MX 7600I, MX 7000D, NH 2150, MX 7600FFL, MX 7600DR, MX 5300CE
ATM lingo -
TPH : Thermal Printer Head, CDU : Cash Dispensing Unit, F/M : Feed Module in Cash Dispenser, Assy : Assembly, CST : Cassette, Rj/Rt : Reject/Retract, EDU-P : Envelope Depository Unit with Printer, P/S : Power Supply, ADA : The Americans with Disabilities Act, BATT : Battery, Earphone Jack : Voice Converter for Visually Disabled Persons, AP : Application Program, SP : Service Provider, EP : Elementary Program, BNA : Bulk Note Acceptor, BCA : Bulk Check Acceptor
